CAD File: an as-built 2D drawing of your space
A CAD File turns your Matterport scan into an as-built 2D drawing in AutoCAD .DWG format, drafted to ISO 13567, the international CAD layer standard.
Clear prices, by scope and size.
| Scope | Processing time | Example price |
|---|---|---|
| Architecture (Standard) | 3-6 days | $488 |
| Architecture and Interior Furniture | 3-6 days | $631 |
| Architecture and Electrical | 3-6 days | $631 |
| Architecture, Interior Furniture and Electrical | 3-6 days | $878 |
Example: a home of about 1,500 sq ft. The price depends on the size of the space and is confirmed once the final square footage is calculated.
What you get.
Scopes
- Architecture: visible walls, floors, doors, columns, ceilings, windows, bathroom fixtures, stairs, roofs.
- Interior Furniture: visible desks, tables, cabinets, shelves, chairs, seating, appliances, kitchen elements and some wall fixtures.
- Electrical: power and data outlets, lighting fixtures and switches, alarms and more, based on the scan point cloud.
- For advanced mechanical, electrical and plumbing systems, the BIM File is the better fit.
Files included
- DWG file, AutoCAD 2020 format
- Layers per ISO 13567
- Room labels in English
Good to know
- Orders can take up to 8 days to be delivered.
- Available for spaces up to 125,000 sq ft.
- Custom layers are not available; check the sample files against your local standards.

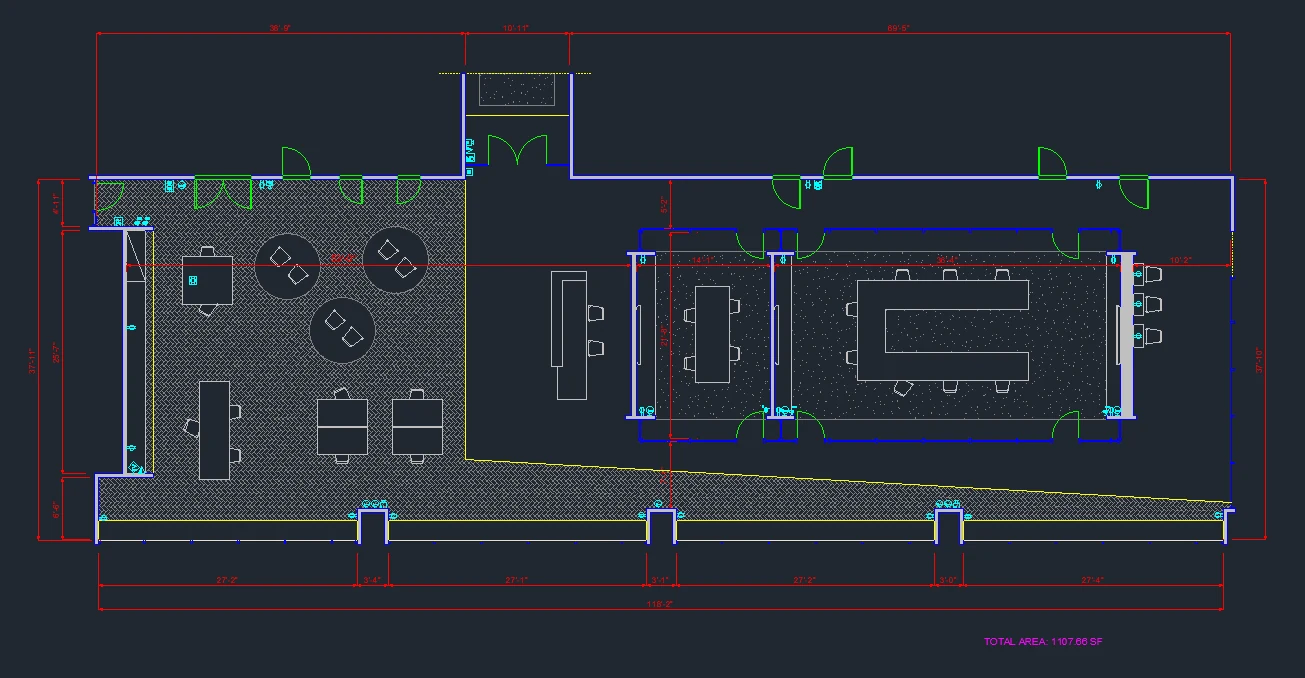

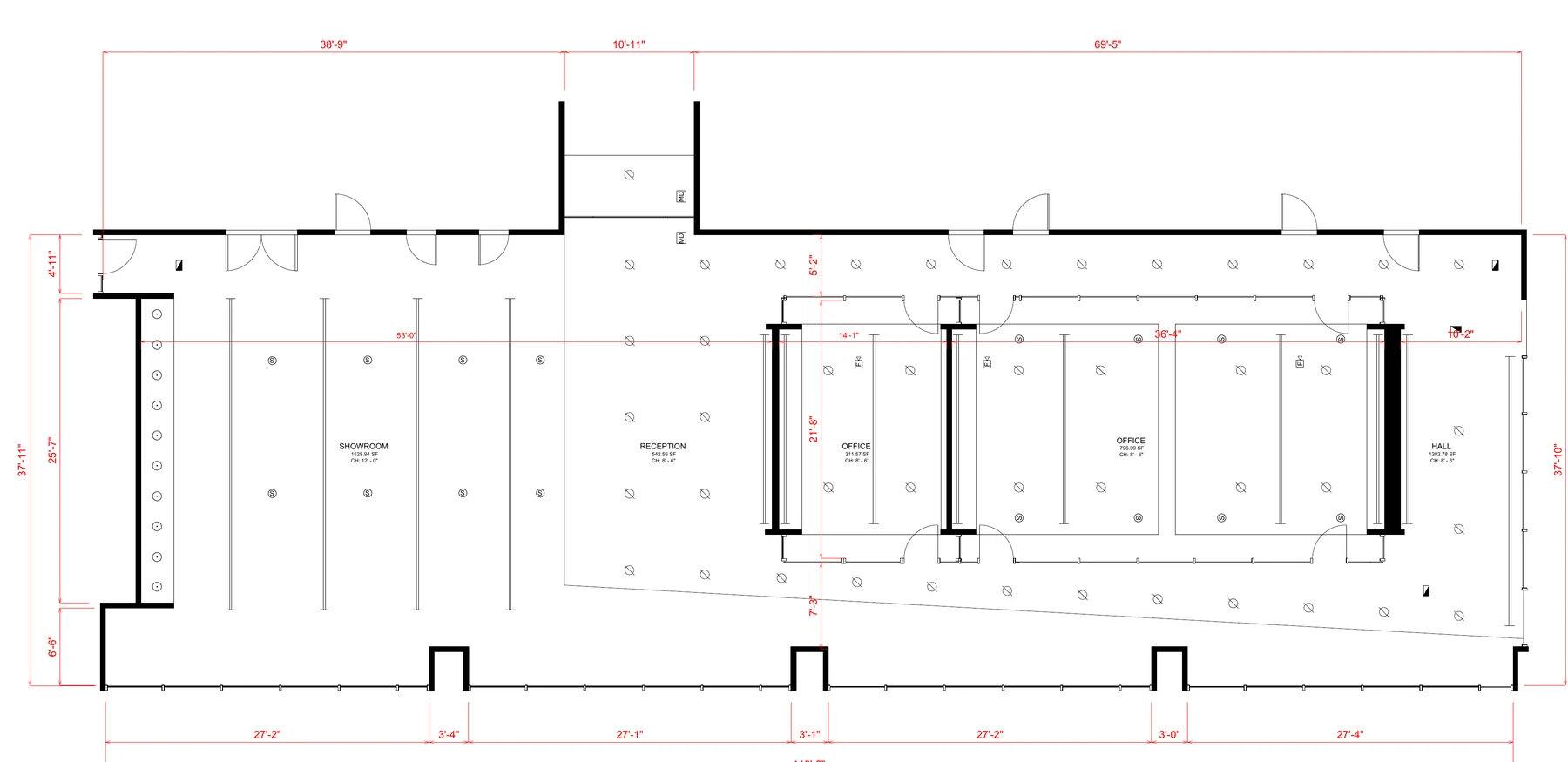

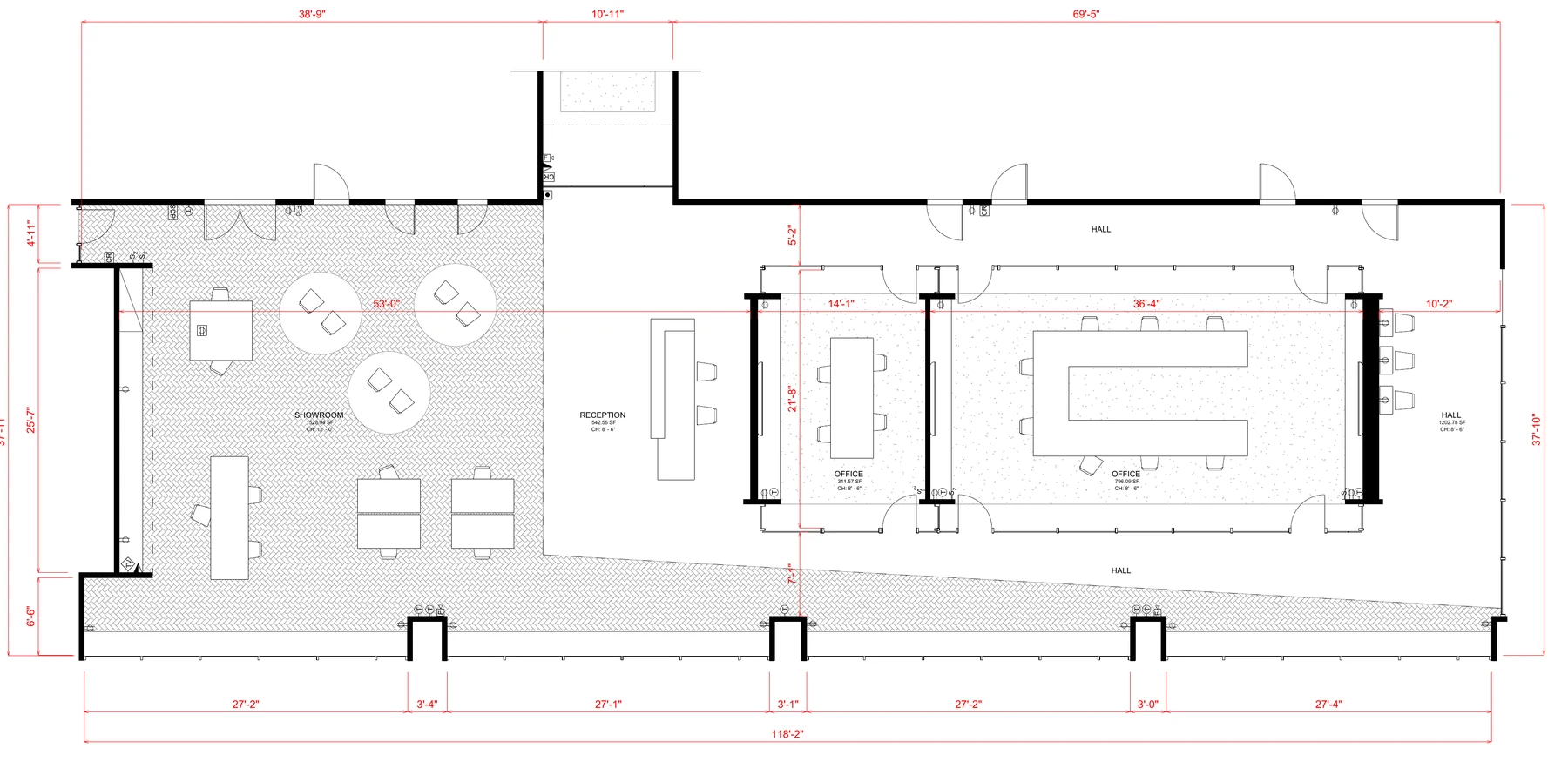

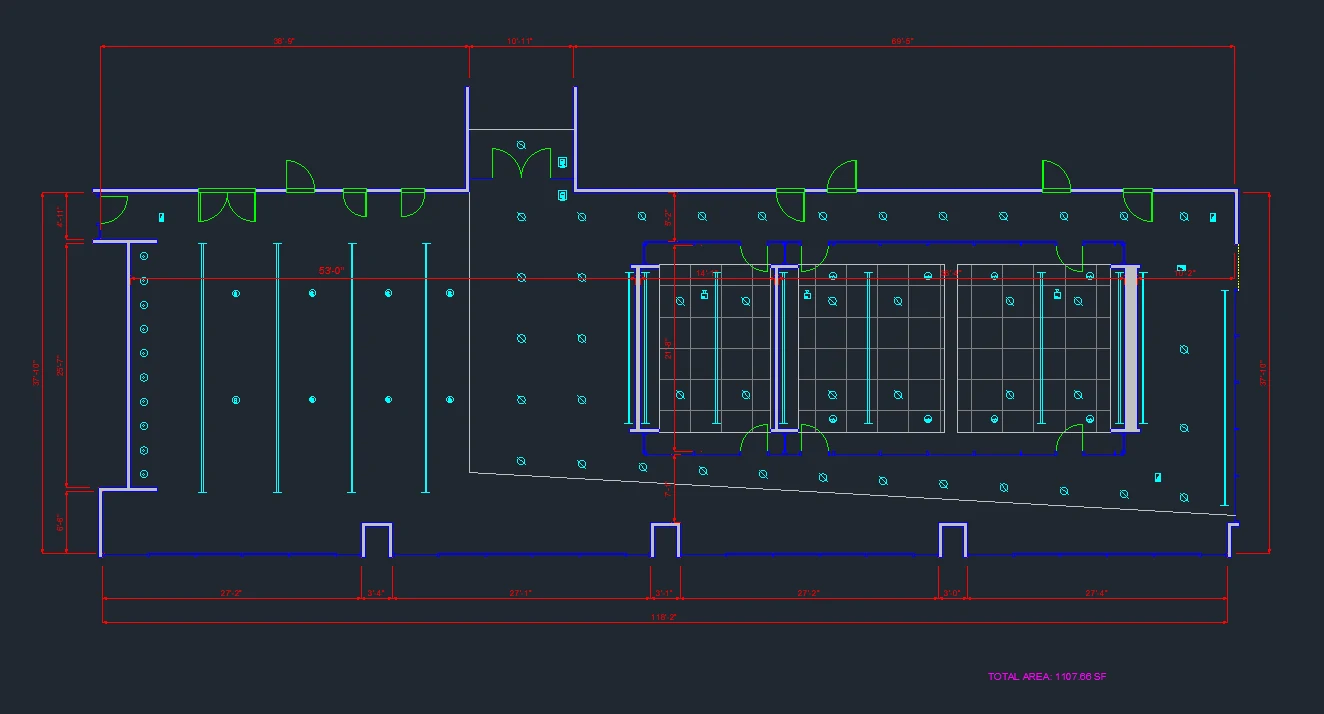

Sample files from Matterport
Order the CAD File.
Tell us where the property is and roughly how big, and we reply the same day with a price.
- From $488 for a ~1,500 sq ft home
- Delivery: 3-6 days
Available only as an add-on to a standard Matterport scan. Scan prices: our price calculator.
Request a quote: CAD File
Jacksonville, St. Augustine and Northeast Florida.
